Jaideep Power Solution Pvt. Ltd is a reputed name in the industry, offering high-end Power Backup Solutions.

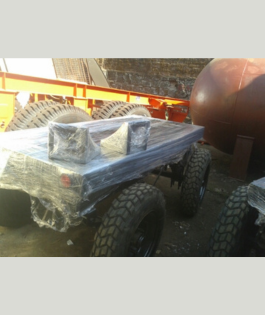

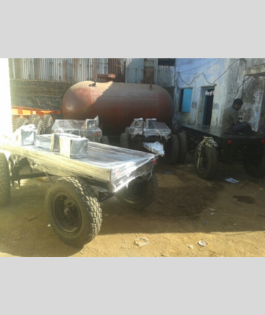

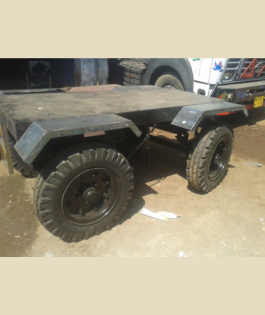

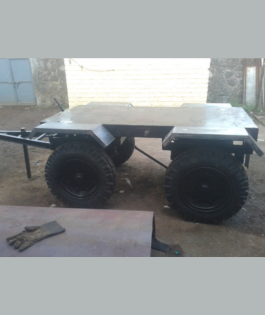

Heavy Duty Four Wheeler Trolley For DG Set Installation Spring Leaf Suspension for 4 Tyre.
Tyre Assembly Size 600 X 16 or 750 X 16 Ply. Branded – Ceat / JK / MRF or any reputed make.
Main Chassis will be of MS 125x75mm Channel and cross member of 50x50 mm welded with reinforcement.
Triangular Draw-Bar, Detachable Type made of M.S Channel 75 X 40 mm.
Heavy Duty Thick Plate with Ball Bearing Type and Nut/Shaft of 36mm provided at the centre.
Manual Locking Brake System of Pull type provided for second axles.
4 Nos Leaf Spring, Consist 12 Leaf each.
All the framework will be degreased and spray painted with two coat of Epoxy Primer and Epoxy Paint.
Reflectors -4 Nos shall be Provided.

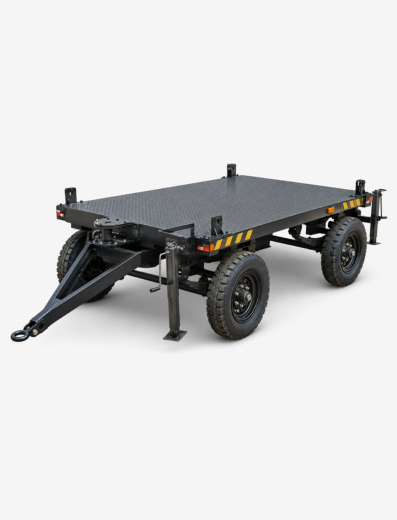

Heavy Duty Four Wheeler Trolley For DG Set Installation with Spring Leaf Suspension for 4 Tyres.
Tyre Assembly Size 600 X 16 or 750 X 16 Ply. Branded – Ceat / JK / MRF or any reputed make.
Main Chassis will be of MS 125x75mm Channel and cross member of 50x50 mm welded with reinforcement.
Triangular Draw-Bar, Detachable Type made of M.S Channel 75 X 40 mm.
Heavy Duty Thick Plate with Ball Bearing Type and Nut/Shaft of 36mm provided at the centre.
Manual Locking Brake System of Pull type provided for second axles.
4 Nos Leaf Spring consisting of 12 leaves each.
Entire framework will be degreased and spray painted with two coats of Epoxy Primer and Epoxy Paint.
Reflectors - 4 Nos shall be provided for enhanced safety.
Spring Loaded Steel Towing Hook of 36mm round
M. S /Chakkar plate will be welded on the Platform of 3mm Thickness.
Size of Axle 65mm X 65mm M.S square with Water Proof Steel Forged Hubs and Tapper Roller Bearings
Front Axle will be of Manoeuvre type with Tilt Plate and Towing A-Frame channel with I bolt.
Manual Sliding/Landing Jack with Pin Lock Shall be fitted on four Corners.
