Reliable Power Backup Solutions

Intelligent UPS Systems designed for uninterrupted lift operation, superior safety, and long-lasting performance.

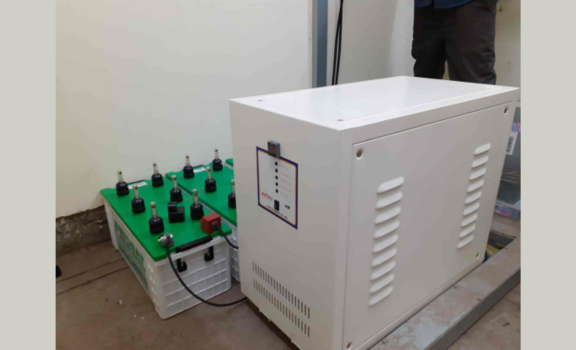

Greaves DG Set

24*7

Availability

Key Features & Specifications :-

Smart Power Protection

Our UPS is Designed to Handle Most Volatile Power Conditions Many Successful Installations in Asian and African countries.

99.99% System Uptime

We Ensure 99.99% uptime of the Systems through our Network of Service-Centre’s all over the Country.

Reliable Power Solution

We are sure that as a professional organization you would like to purchase our systems to achieve the most reliable solution to your power problems.

Technical Specifications

S.No
Description
Details
01.
Technology
• Microprocessor Based Intelligent UPS using IGBT, PWM Technology.
• Double conversion with Isolation at output.
02.
Switching Frequency
High Frequency Design Ensures.
• Low Switching Losses. • Purity Of sine-wave.
• Ultra-fast Transient Response. • Very Low Noise.
03.
Wide Input Range
180V-460V AC (Three Phase) for 8.0 To 100KVA 45 Hz - 55Hz.
04.
Accurate Output On Inverter Mode
• 415V AC + /-1.0 % ( Three Phase). • 50 Hz +/- 0.1% (Crystal Controlled).
05.
Ratings
5.0/8.0/10.0 KVA. Upto 100KVA
06.
Output Power Factor
0.8 Lagging to unity
07.
Transient Response
• For 100% step Load change output stays within +/- 5% & recovers within 5 msecs .i.e ¼ cyclic.
• Other Manufacturer normally offer much slower recovery. • i.e. within 40 msec (2 cycles). 4 :1
08.
Crest Factor Metering
Latest LCD/DPM Panel Meter to display following parameters (Optional ).
• Output Voltage • Input Voltage • Battery Voltage
• Output frequency • Input Frequency • Charge/discharge Current.
• Status related to UPS working Like Load on UPS, Balance
• Battery Back-up. Charger O.K
• DC Over –Voltage, Phase –fail etc, shall be provided.
09.
Wave Form
Pure Sinewave.
10.
Operating Temperature
Relative Humidity
• 0 to 50 C, 95% R H (Maximum).
• Our UPS has passed Environment – Test from Defence. Laboratory Of R & D E ( Engineers) Dighi, Pune.
11.
Inverter Efficiency
Better than 90%.
12.
Charger Efficiency
85% Typical.
13.
Input Harmonic Distortion
Less than 10 % typical.
14.
Genset Compatility
UPS Systems is fully compatillity to any type of genset.
15.
Protections
• Output Over Voltage. • Output Overload. • Output Short Circuit • Battery Under- Voltage.
• Forced Air –Cooling to protect electronic & other components from overheating.
